Transmission Control Unit

TurboLamik TCU 2.0 is an advanced transmission controller for the extremely popular and durable ZF 8HP transmissions.

It allows you to control the gearbox in 8 modes varying from gentle automatic to race sequential style with extremely quick shift times

TCU 2.0 was the first 8HP controller on the market and it has been in continuing development for over 10 years.

It’s been successfully installed in thousands of vehicles from everyday cars to high HP drag cars. Also very popular for track use and drifting due to the clutch option and high transmission reliability.

Supports:

8HP45, 8HP50, 8HP55, 8HP70, 8HP75, 8HP90, 8HP95

8HP51 and 8HP76 are supported with additional parts

TCU 2.0 can be used for:

Street use

Drag Racing

Race

OFF ROAD

Drift

Hill Climb

8 driving modes – From an OEM automatic feel to full race with a flip of a switch!!!

Manual, auto, semi auto shifting mode using a shifter, sequential style shifter or paddles

Transbrake option

Automatic Adaptation

Self diagnosis with error codes showing on external display

This TCU also supports a digital clutch which allows you can drive car like a manual trans car. You can do burnouts and clutch kick the trans for drifting.

Your ZF 8HP gearbox will need a TCU modification to bypass the internal controller.

A PCB board is soldered in place of the factory TCU and all gearbox commands will be executed externally using TurboLamik TCU.

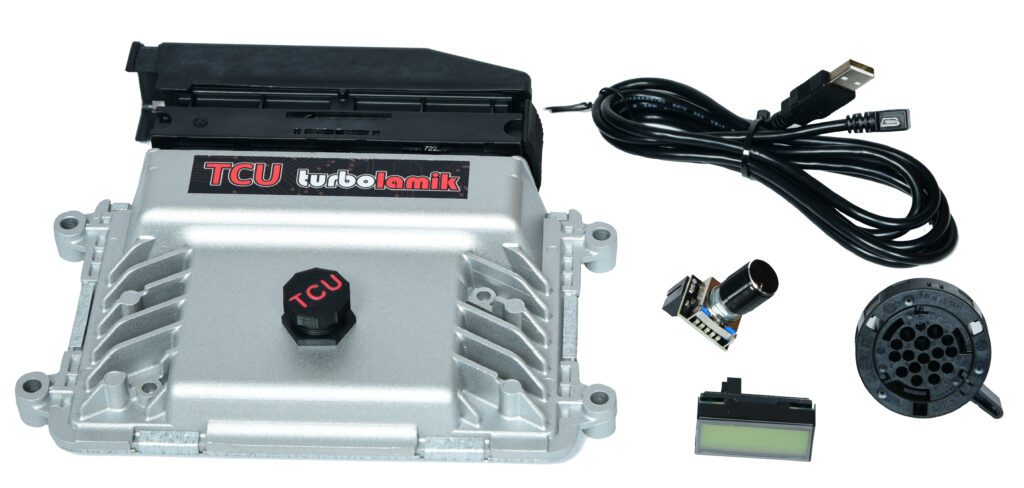

This item includes:

TurboLamik TCU 2.0 with USB cable ONLY
